steel coil slitting machine

FOB Reference Price:Get Latest Price
US $100,000-400,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
WANXIN
Model Number:
ZJ1200
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Slit the coil as fixed width
coil width:
900-1220mm
coil thickness:
0.6-3.0mm
coil weight:
10-18MT
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden cases or as request.
Port
Tianjin Port
Lead Time :
Shipped in 120 days after payment





Specification for ZJ1212*3mm steel coil slitting machine



I. Steel coil slitting machine General introduction

Steel coil slitting machine is used to uncoil and level the coil plate, slit the steel plate by rotary shearing unit, then recoil the plate by recoiler, at last pack the coil.





1) Coil material: cold/ hot rolled steel

2) Coil thickness: 0.6~3.0mm;

3) Coil width:500~1212mm

4) Coil ID: Φ508~Φ760mm

5) Coil OD: Φ1000~Φ1600 mm

6) Coil maximum weight:18MT



2. Steel coil slitting machine Technical process



Loading coil  uncoiler  straightening head & pinching & leveling machine  hydraulic shearing machine vertical roll  rotary slitting machine  scrap winder  accumulator  tension device   recoiling machine  discharging car





Remark:

All the above workers should take part in installing the slitting line during installation and debugging, because our engineer could train them about that how to operate and know their machine while installing.

3. Steel coil slitting machine Power supply needed:

 Motors of the line without optional machines: 260KW

6. Installation for the user’s reference.

(Plant size details please see Layout drawing):

1) Estimated area needed for the machines:219.5M(L×W)

2) Line foundation drawing will be provided by manufacturer, and the user should build the available foundation according the drawing.

3) 20 tons capacity lifters /1 unit

4) Power supply needed:

 Motors of the line: 260KW

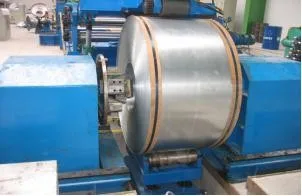

3. Steel coil slitting machine DETAILED MACHINES PHOTOS

car.jpg1.jpghead.jpgslitting 2.jpgUNLOADING CAR.jpg
