Slitting line

FOB Reference Price:Get Latest Price
US $150,000-250,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10 Set/Sets per Year
Port:
Tianjin Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
WANXIN
Model Number:
ZJ1300/1600/2000
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Slit the coil as fixed width
Coil width:
900-1300/1600/2000
coil thickness:
0.5-3.0mm
coil weight:
max 25tons
Packaging & Delivery
Packaging Details
Wooden cases or as request.
Delivery Time
Shipped in 120 days after payment





ZJ1300*3mm slitting machine



I. SLITTING machine General introduction

Slitting machine is used to uncoil and level the coil plate, slit the steel plate by rotary shearing unit, then recoil the plate by recoiler, at last pack the coil.





1) Coil material: cold/ hot rolled steel

2) Coil thickness: 0.6~3.0mm;

3) Coil width:500~1300mm

4) Coil ID: Φ508~Φ760mm

5) Coil OD: Φ1000~Φ1600 mm

6) Coil maximum weight:25MT



2. SLITTING machine Technical process



Loading coil  uncoiler  straightening head & pinching & leveling machine  hydraulic shearing machine vertical roll  rotary slitting machine  scrap winder  accumulator  tension device   recoiling machine  discharging car





Remark:

All the above workers should take part in installing the slitting line during installation and debugging, because our engineer could train them about that how to operate and know their machine while installing.

3. SLITTING machines Power supply needed:

 Motors of the line without optional machines: 260KW

6. slitting machines Installation for the user’s reference.

(Plant size details please see Layout drawing):

1) Estimated area needed for the machines:219.5M(L×W)

2) Line foundation drawing will be provided by manufacturer, and the user should build the available foundation according the drawing.

3) 20 tons capacity lifters /1 unit

4) Power supply needed:

 Motors of the line: 260KW

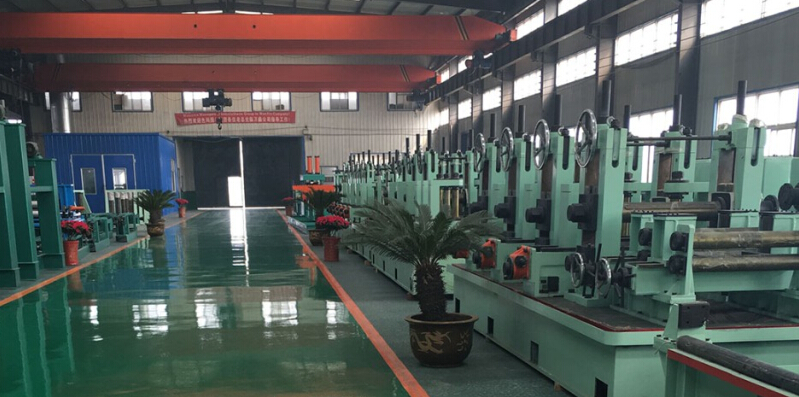

3. SLITTING machines DETAILED MACHINES PHOTOS

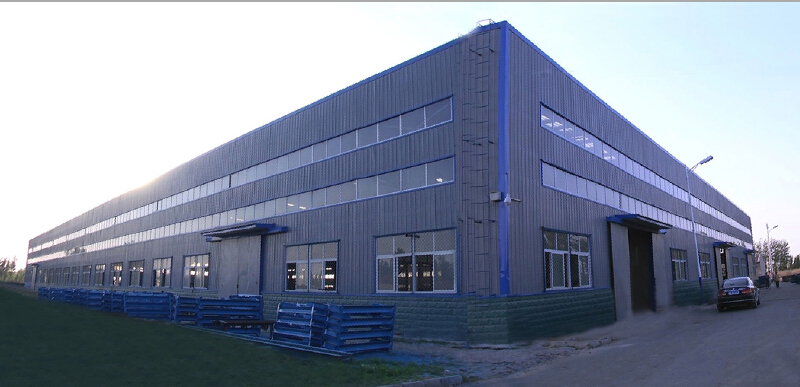

Slitting machine factory view
