steel coil slitting machine

FOB Reference Price:Get Latest Price
US $80,000-250,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
steel coil slitting machine
Model Number:
ZJ1600
After-sales Service Provided:
Engineers available to service machinery overseas
slitting Material:
Carbon steel, stainless stel,PPGI etc
plate Thickness:
0.5 to 4.0 mm
Plate width:
900 to 1600 mm, up to the customer
Max. coil weight:
25-40 MT
Cutting speed:
0-120 m/min
Floor area:
32 m X 10 m
Color:
Up to the customer
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
20'' or 40'' containers
Port
Tianjin Port
Lead Time :
Shipped in 120 days after payment

Steel coil slitting machine is used to uncoil and level the coil plate, slit the steel plate by rotary shearing unit, then recoil the plate by recoiler, at last pack the coil.



(Steel coil slitting machine could be used on line and also could be used seperately.)



Steel coil slitting machine techncial process:

 Loading coil—Uncoiling—Leveling—Cutting ends—Rotary shearing—Accumulator—Separate unit—Tension coil—Recoiling.



I. steel coil slitting machine General introduction

steel coil slitting machine is used to cutting a certain width and thick steel plate longitudinally to a present width, then it will be rolled to a strip. The unit can cut by active constant tension or passive constant speed tension-shear. It applies to some material of cold roll, hot roll mild steel and galvanized iron (CR, HR & GI) in the fields of welded pipe production factory and steel production factory and other steel products industry. This production line is automatic operating, high machine accuracy, so it also has wide application range.



1. steel coil slitting machine Applicable material:

1) Coil material: cold/ hot rolled steel, tensile strength ≤520MPa,yield strength ≤350MPa.

2) Coil thickness: 0.5~4.0mm;

3) Coil width:500~1600mm

4) Coil ID: Φ508~Φ760mm

5) Coil OD: Φ1000~Φ2000 mm

6) Coil maximum weight:25 tons



2. steel coil slitting machine Technical process and workers list:



Loading coil  uncoiler  straightening head & pinching & leveling machine  hydraulic shearing machine vertical roll  rotary slitting machine  scrap winder  accumulator  tension device   recoiling machine  discharging car





Remark:

All the above workers should take part in installing the slitting line during installation and debugging, because our engineer could train them about that how to operate and know their machine while installing.

3. steel coil slitting machine Power supply needed:

 Motors of the line without optional machines: 300KW

4. steel coil slitting machine Total weight of whole line machines: 61.3 tons

5. steel coil slitting machine Installation for the user’s reference.

(Plant size details please see Layout drawing):

1) Estimated area needed for the machines:2410M(L×W)

2) Line foundation drawing will be provided by manufacturer, and the user should build the available foundation according the drawing.

3) 25 tons capacity lifters /1 unit

4) Power supply needed:

 Motors of the line: Approx. 300KW





Steel coil slitting machine model list:

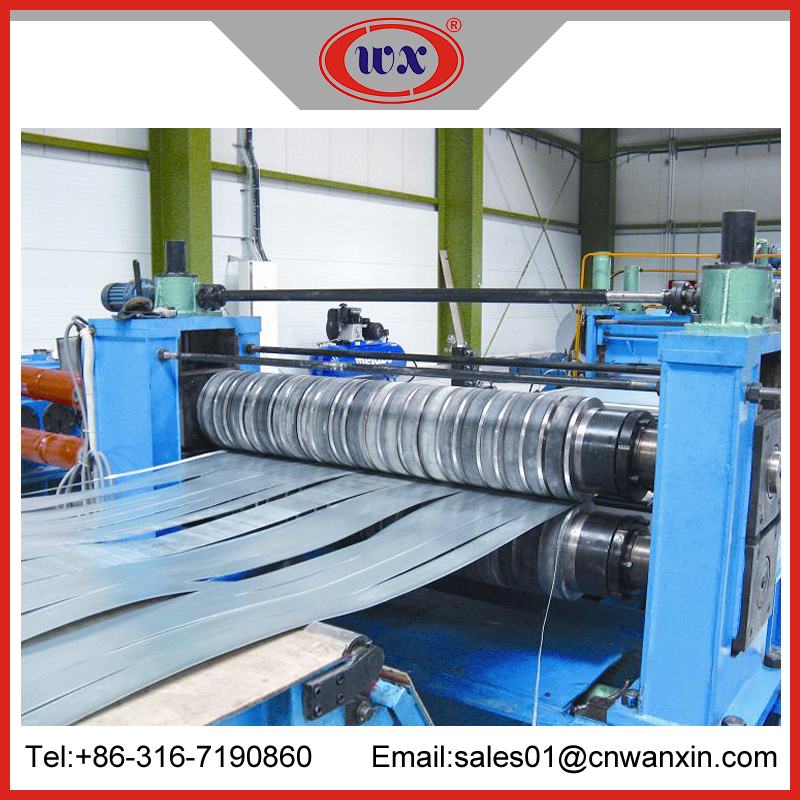

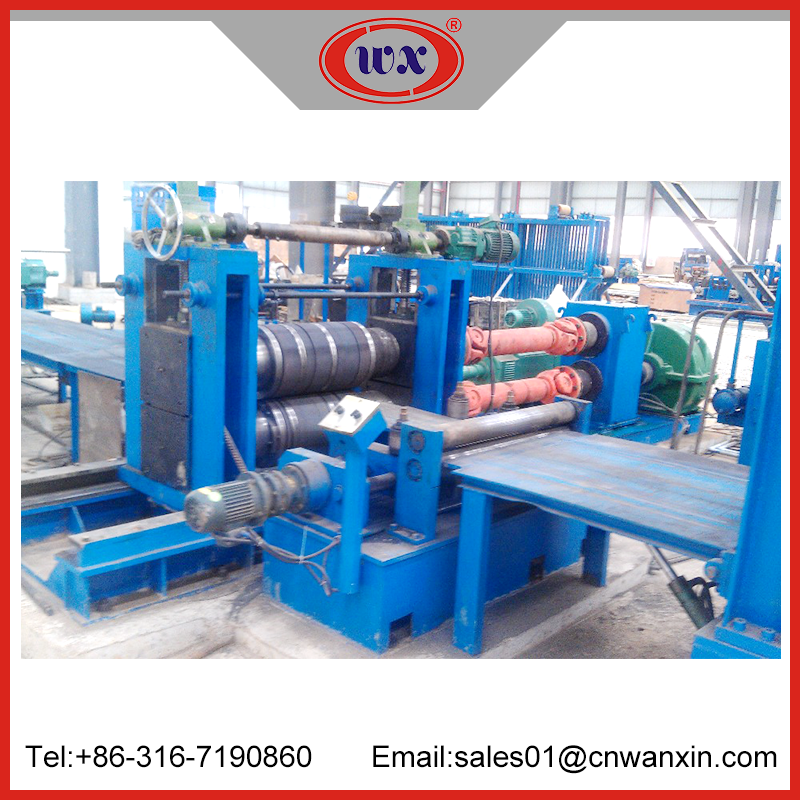

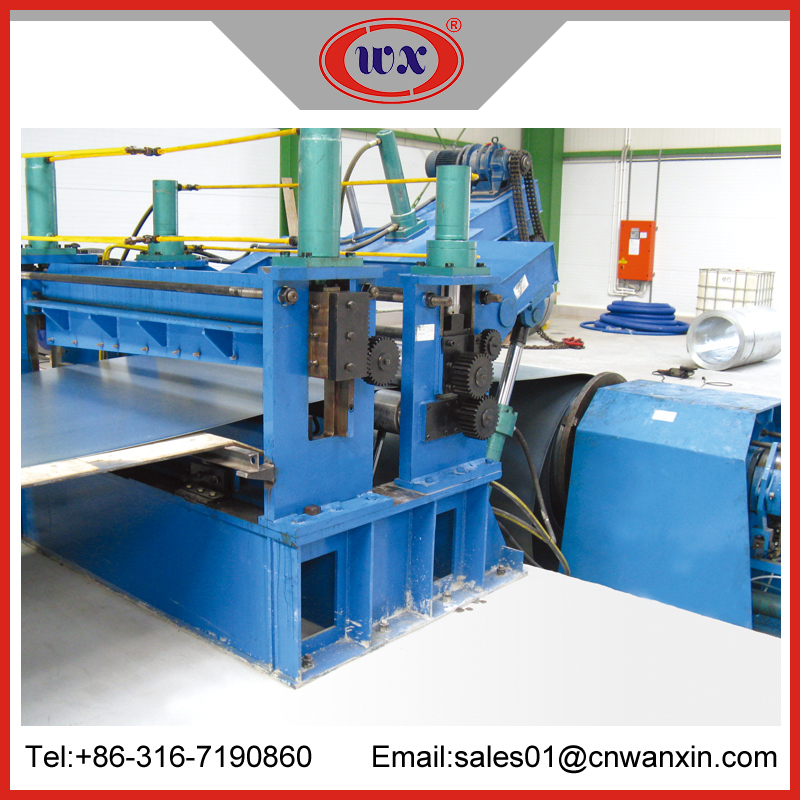

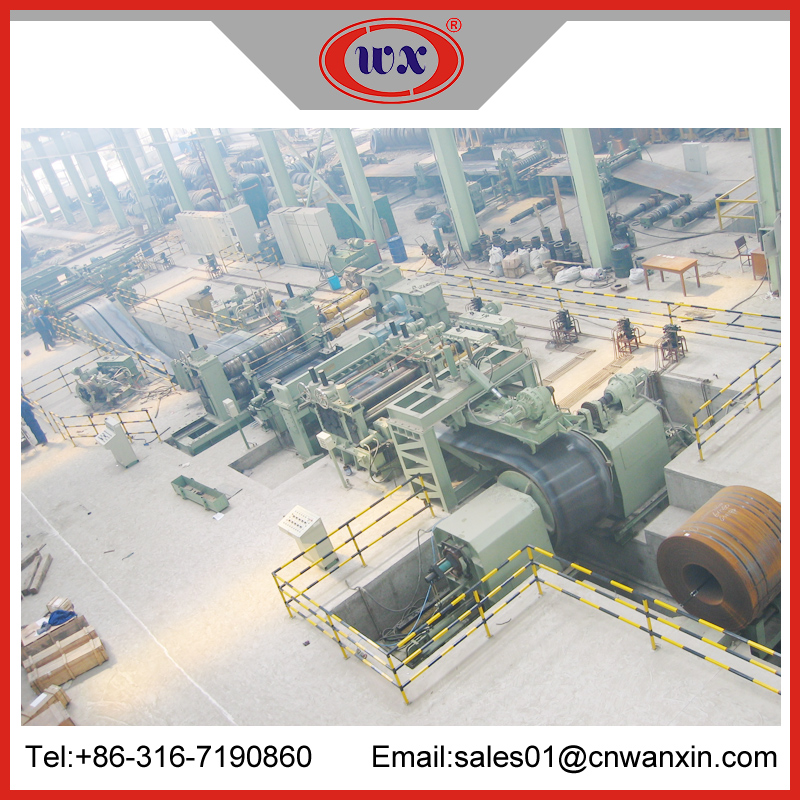

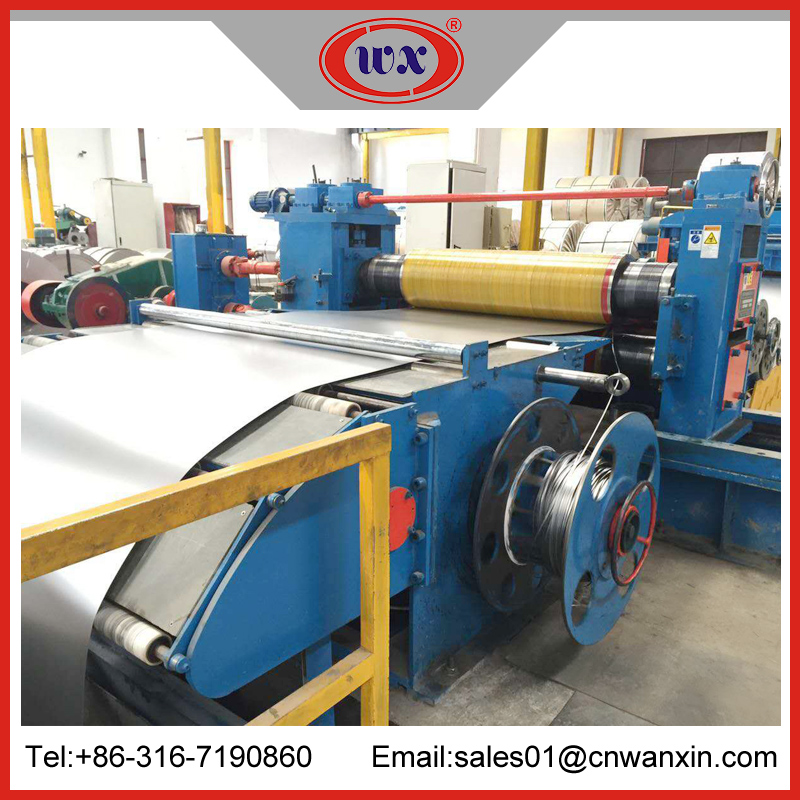

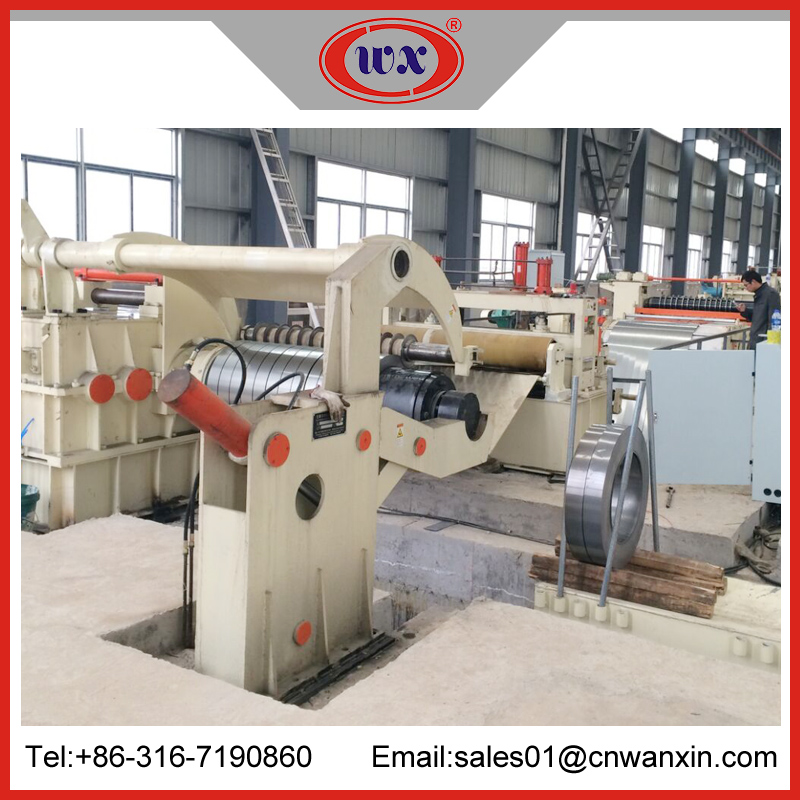

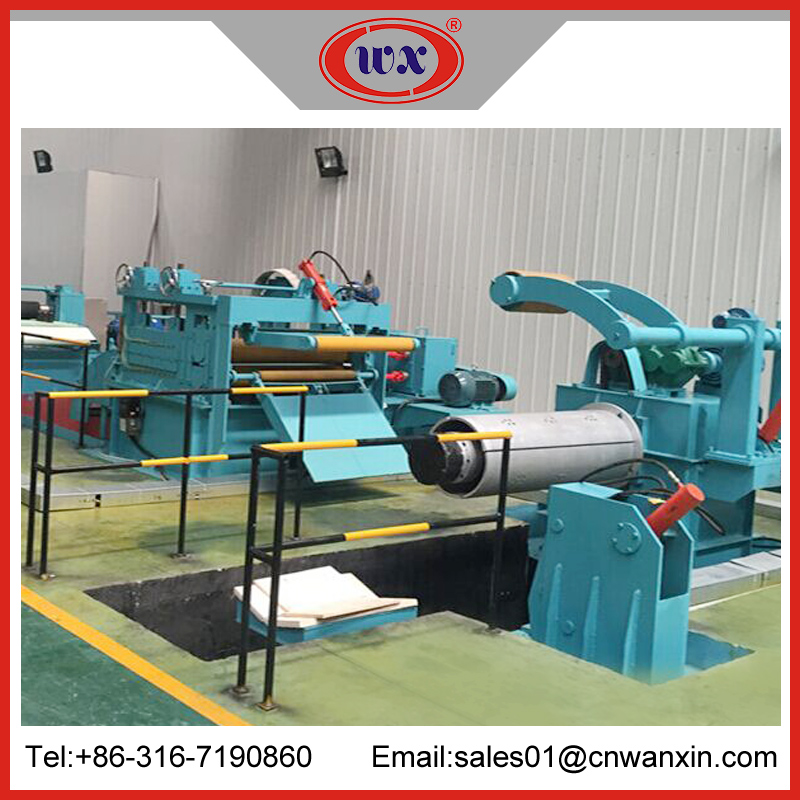

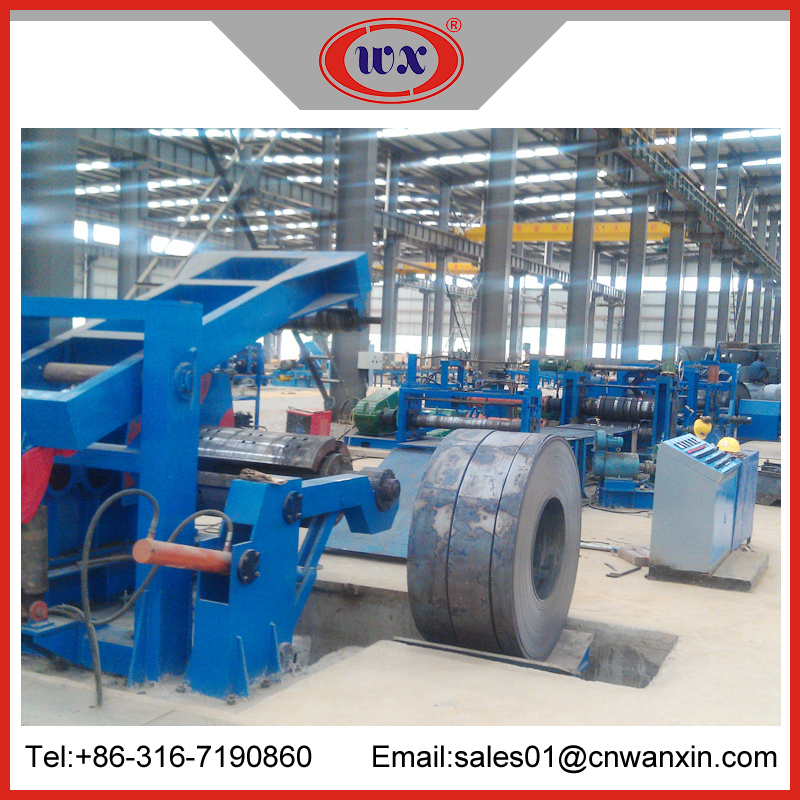

Steel coil slitting machine photos
