Hot dip Galvanizing Line

FOB Reference Price:Get Latest Price
US $1,500,000-8,000,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Model Number:
Hot dip Galvanizing Line
After-sales Service Provided:
Engineers available to service machinery overseas
galvanized products:
Up to customer
Supply Ability
Supply Ability:
80 Set/Sets per Year
Packaging & Delivery
Packaging Details
40'' or 20'' containers
Tianjin Port
Lead Time :
Shipped in 180 days after payment

I. Hot dip Galvanizing Line:

The hot dip galvanizing line is used to dip the coil at hot-zinc.



2. The hot dip galvanzing line specification

Process type:                     None-Oxidation Furnace type(reduction method)

Working mode:                     Continuous

Direction:                        According to customer requirements


Line speed:

Entry part:                       10—80m/min

Process part:                     max 55m/min

Exit part:                        10—80m/min

Threading speed:                  15mpm

Drive mode:                          DC drive

The line length:                     170m

Working hours:                       7,200hour/year

Capacity:                            70,000 tons/year


3. hot dip galvanizing line technical process


Manpower upload --- Uncoiler unit I --- Loading trolley--- Transmission roller --- Uncoiler unit II--- Loading trolley --- Transmission roller --- Transmission roller --- Entrance shearing machine--- Welding machine --- 1# S Roller --- Entrance stuff storage unit --- 2# S Roller ---Tension test roller --- Anneal furnace ---Quick Cooling unit --- furnace nose --- Zinc pot --- Gas knife---  Cooling tower --- Air cooling unit --- Water cooling unit ---Passivation unit--- Drying unit --- 3# S Roller --- Exit stuff storage unit --- 4# S Roller --- BSM--- 5# S Roller --- Transmission roller --- Exit shearing machine --- Recoiler --- unloading trolley ---Manpower unloading

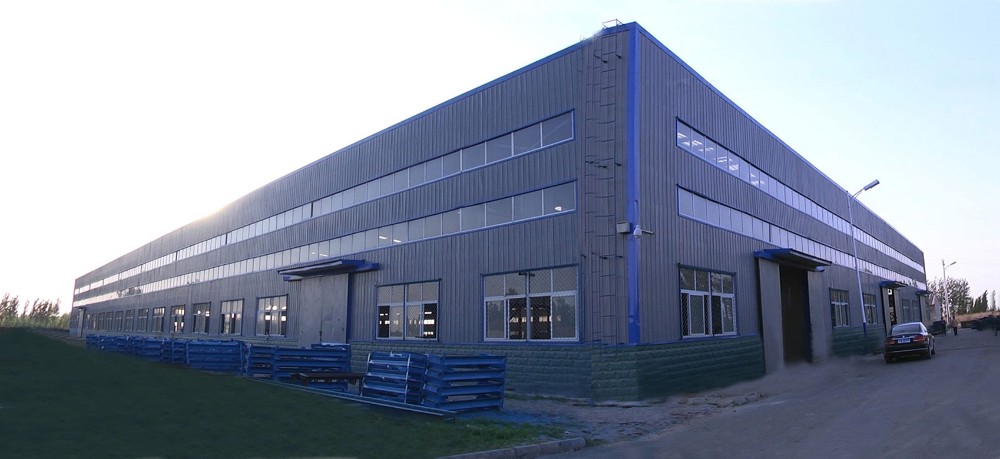

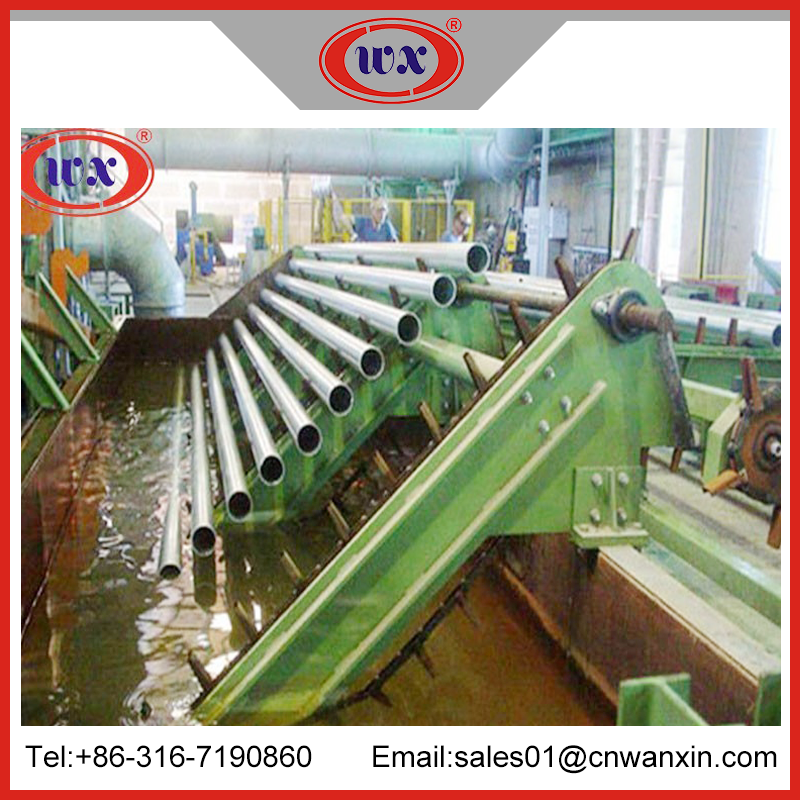

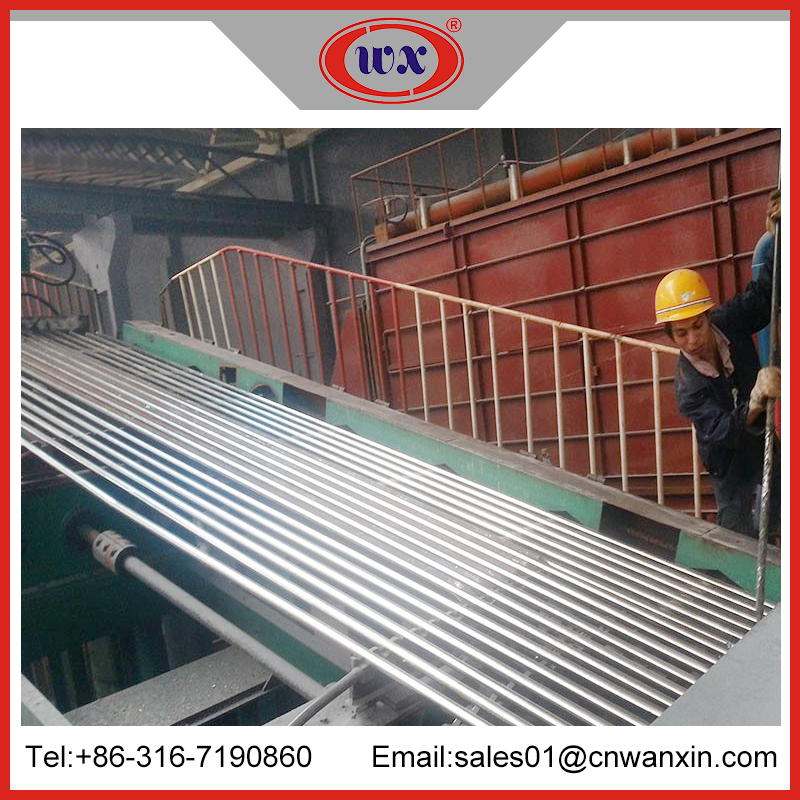

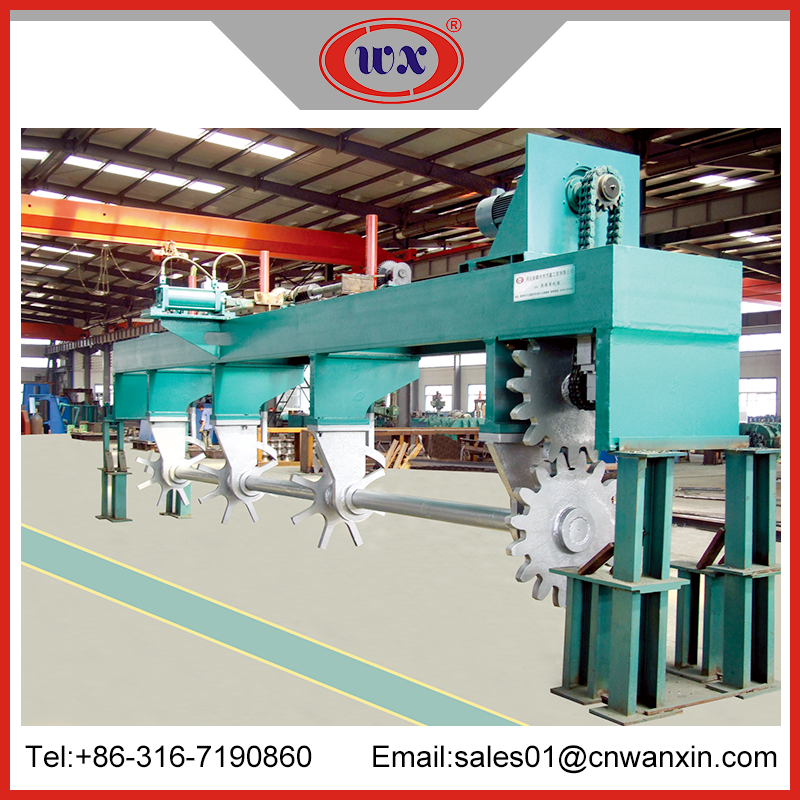

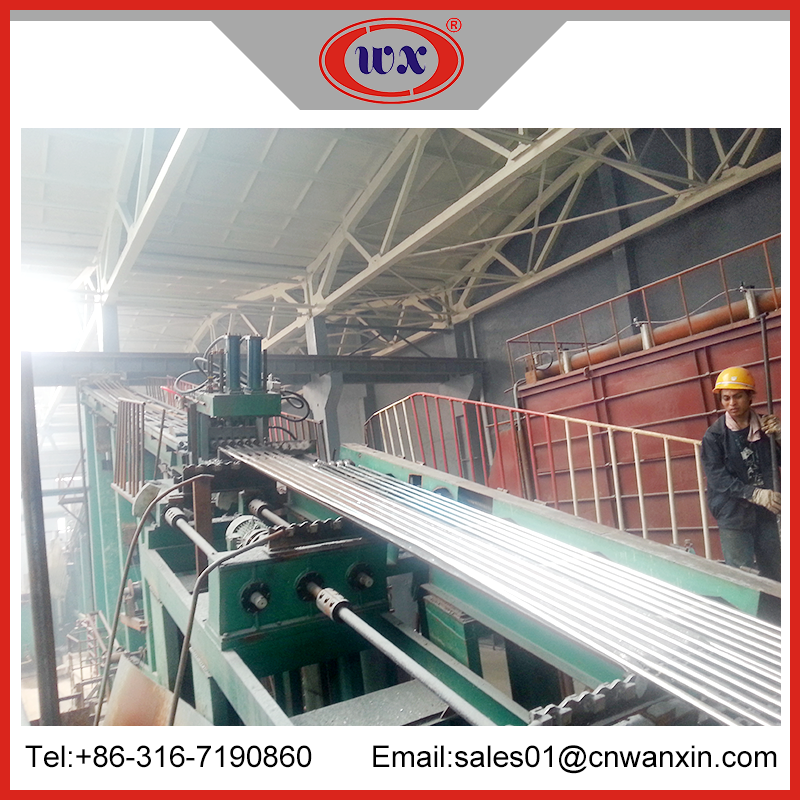

Manufacturing Factory view(WANXIN company)
