Quick Details

  • Condition: New
  • Type: SLITTING LINE
  • Pipe Material: Carbon Steel
  • Production Capacity: 0-160M/MIN
  • Place of Origin: Beijing, China (Mainland)
  • Brand Name: WANXIN
  • Model Number: ZJ1550
  • Voltage: 415V/420V/440V/380V
  • Power(W): 250kw
  • Dimension(L*W*H): 21.5*1.1M
  • Certification: ISO9001:2008
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Coil diameter: 508-1600mm
  • Coil width: max. 1550mm
  • coil thickness: 0.75-3.0mm
  • coil weight: max. 25t
  • slitter piece: about 10 pieces
  • Speed: 0-160m/min
  • worker contol: only ione worker
  • electrical part: PLC-siemens

Packaging & Delivery

Packaging Details containers
Delivery Time 90 days
Product Description

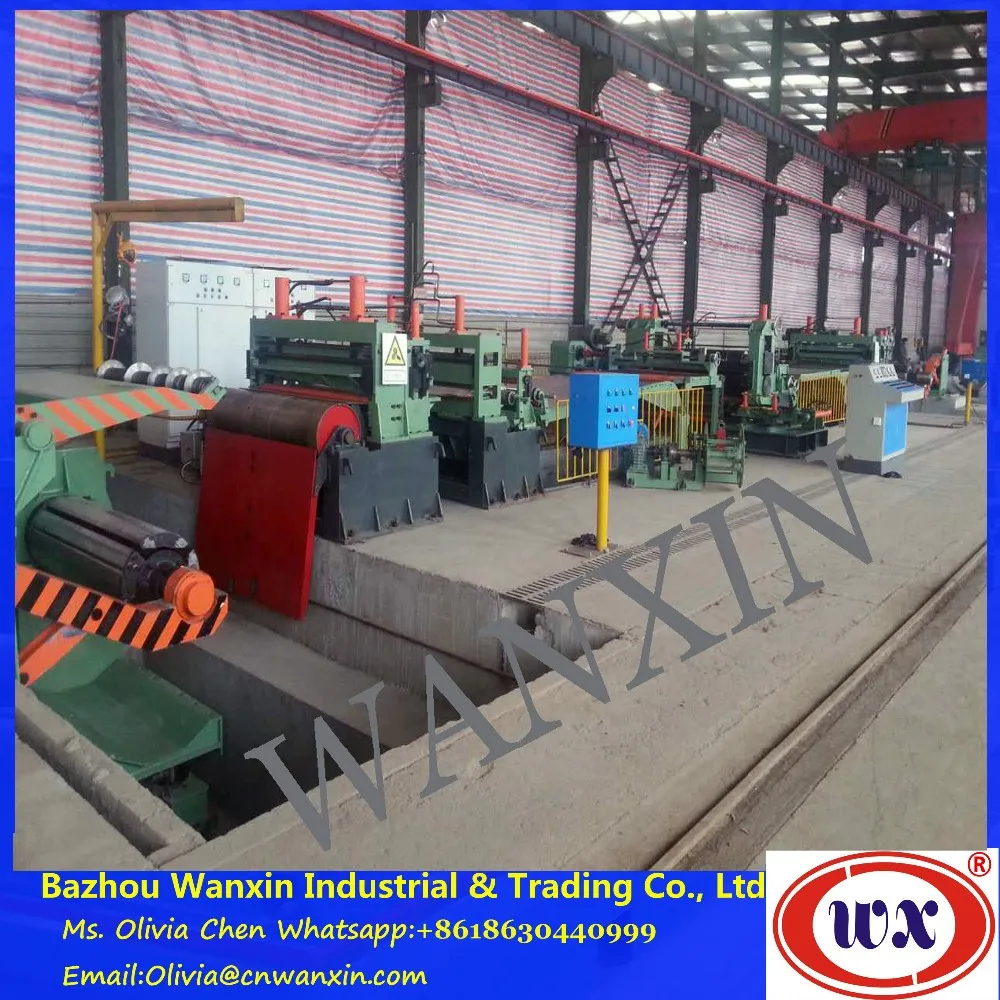

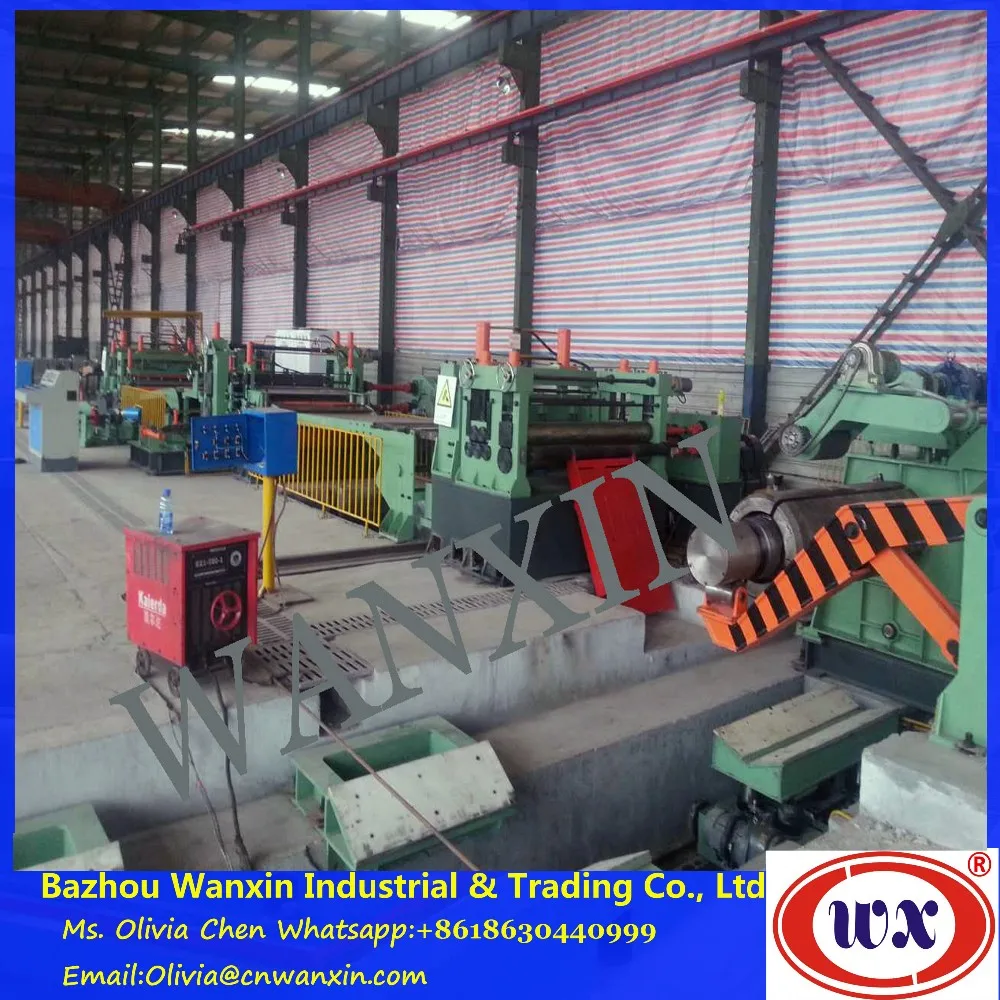

Product Application--carbon steel coil slitting machine galvanized steel coil slitting line

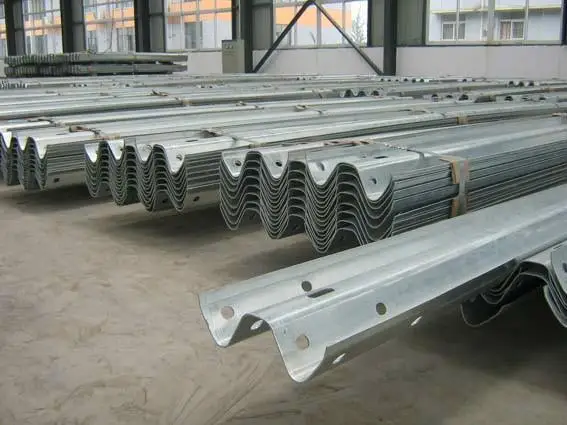

Coil Slitting Machine is used to slit the carbon steel coil to the required size. and the finished slited coil could used to produce pipe/tube, or guardrail and U& G purlin steel etc..

ZJ1550 Slitting machine is one of the most popular. and it is satisfy the followings:

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Raw Coil
diameter
508-1600mm
width
0-1550mm
thickness
0.75-3.0mm

coil slitting machine specification
coil weight
max. 35t
speed
0-160m/min
slit pieces
10 pieces

electrical  system
electrical system
PLC-Siemens
control
only one worker control
auto
full automatic
125

Main Features

1) Full-automatic slitting machine-only need 1-worker to control

2) Design and Installed engineers have more than 23 years experience in overseas

3) Slitting machine select PLC-Siemens

4) Coil slitting machine features:

----- Longlife using,

-----Heavy weight, no shake

-----Full automatic only 1 worker control,

-----PLC control in the whole line.

---- Easy operation and control

-----German engineer as the strong support for us.

----- High automatization and no pollution

Customers reference
Detailed Images

Machine Parts

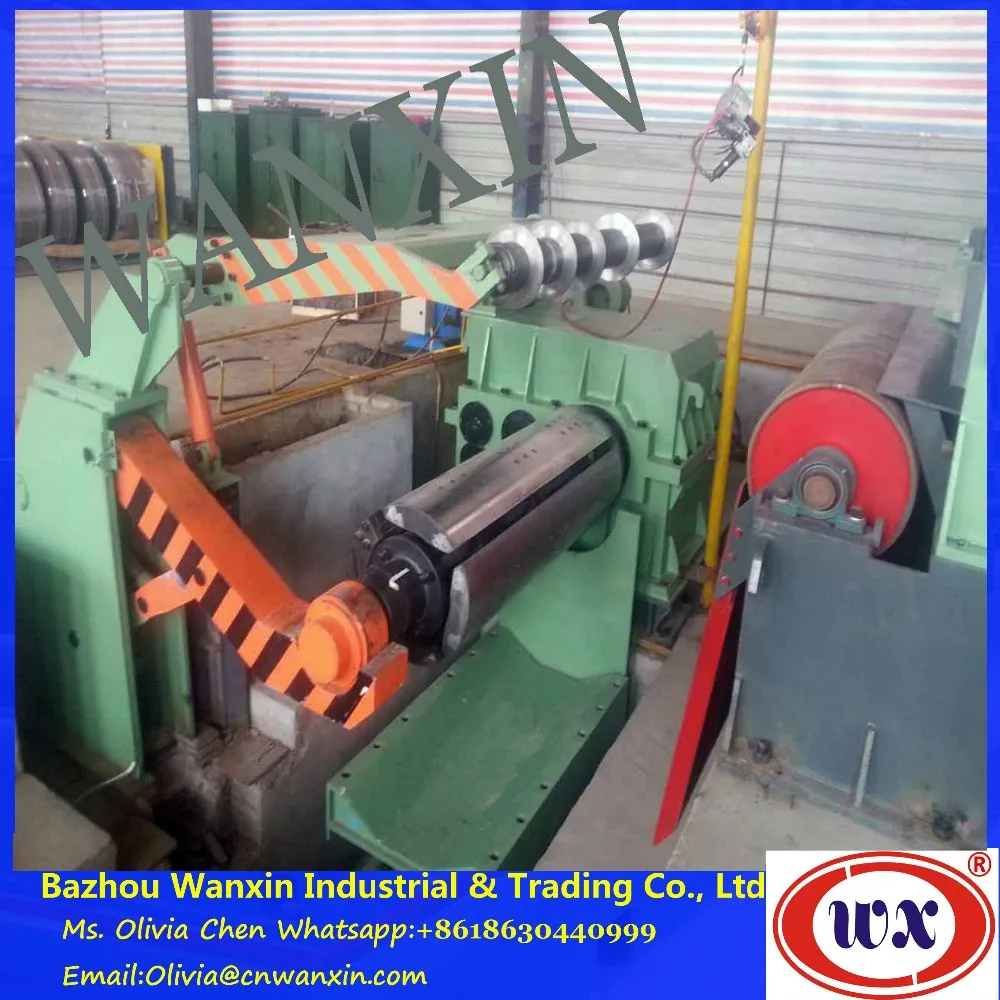

Name: Uncoiler

Brand: wanxin

Original: china

Support steel rolls and uncoiling. It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils and is equipped with supporting stand. Moment motor drives the coils running and the motor can run right and left to prevent the coils running by inertia.

Main Features

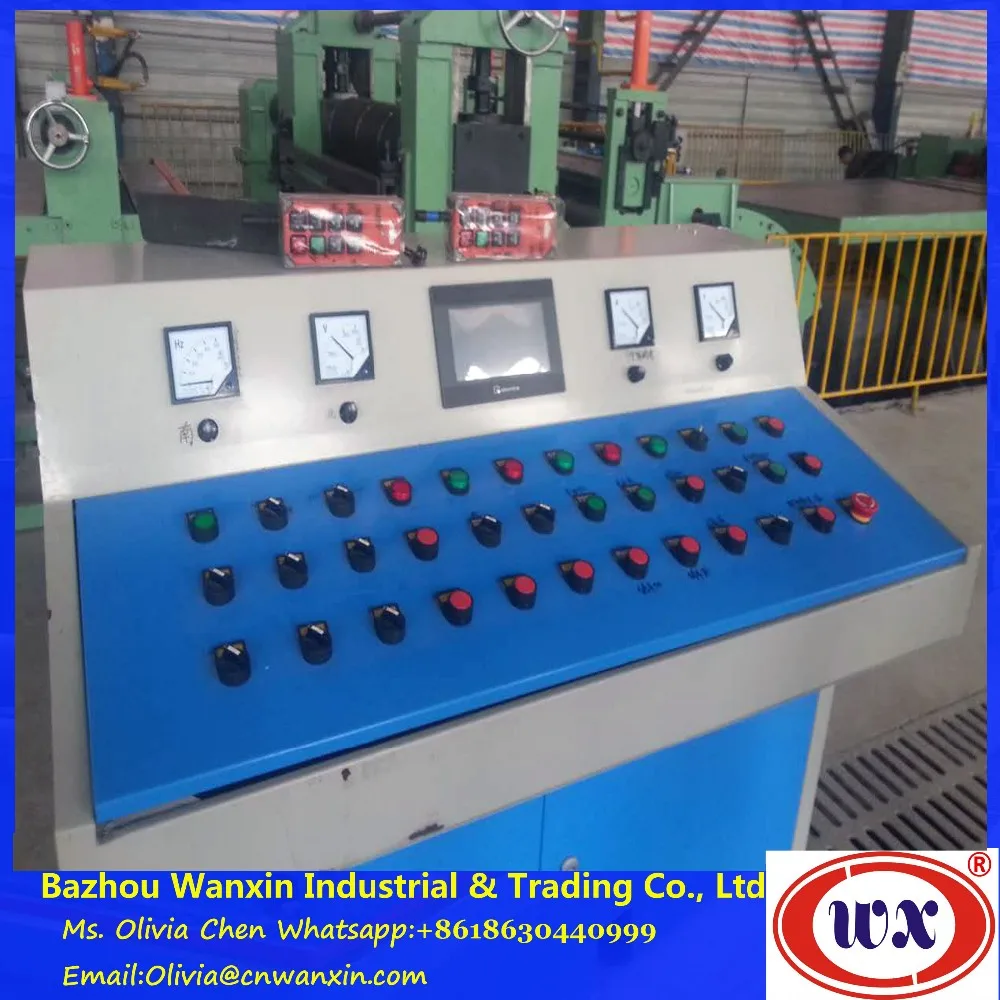

Name: PLC CONTROL
Brand: WANXIN
Original: CHINA
Electrical part selects PLCcontrol-Seimens, only one worker for the whol slitting line is enough

Machine Parts

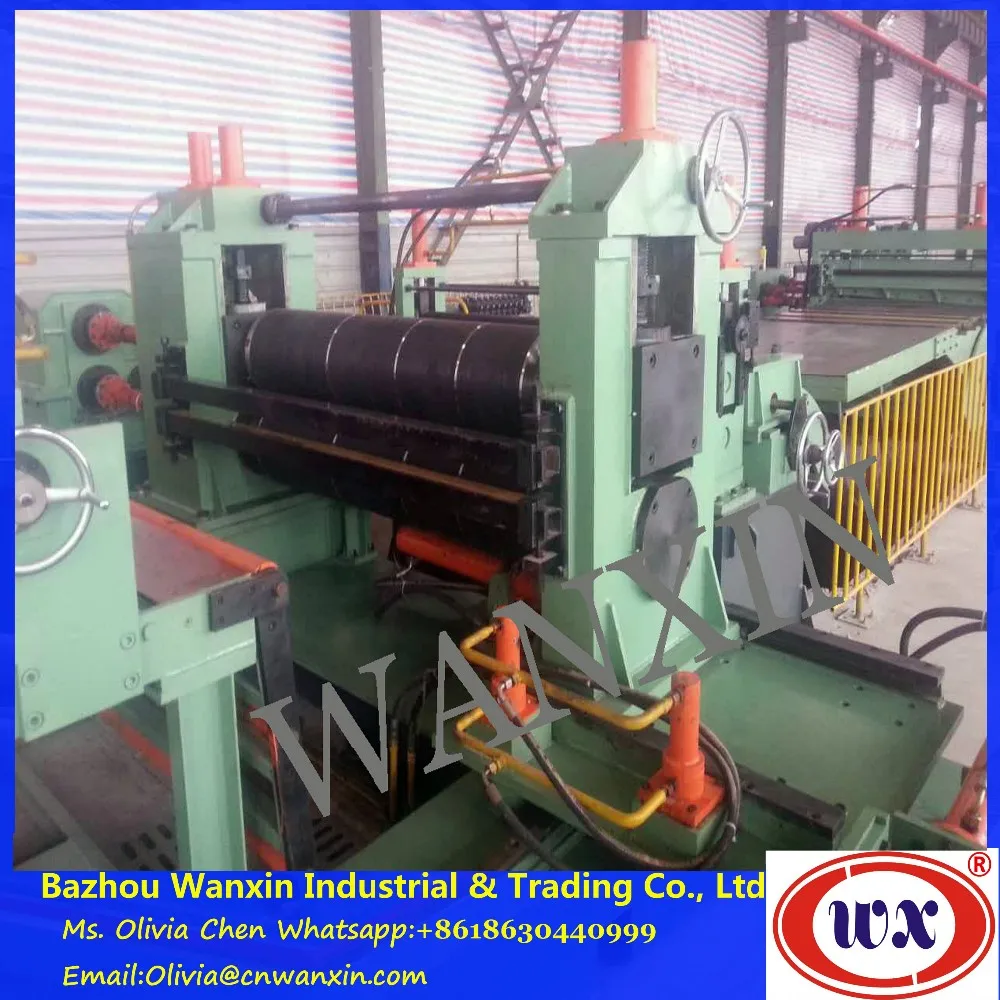

Name: slitting machine
Brand: WANXIN
Original: China
1. Power part: This is composed of power-stand, decelerator, 55KW direct current motor, gear distributing case, coupler, spindle, connecting-cover, etc.
.2 Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot(φ220mm, 2pcs), movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device, accompany of blade, separating cover, rubber band and 10 blades with the machine
3 It change the the blades through moving out the bracket hydraulically and is very convenient and fast.

Main Features

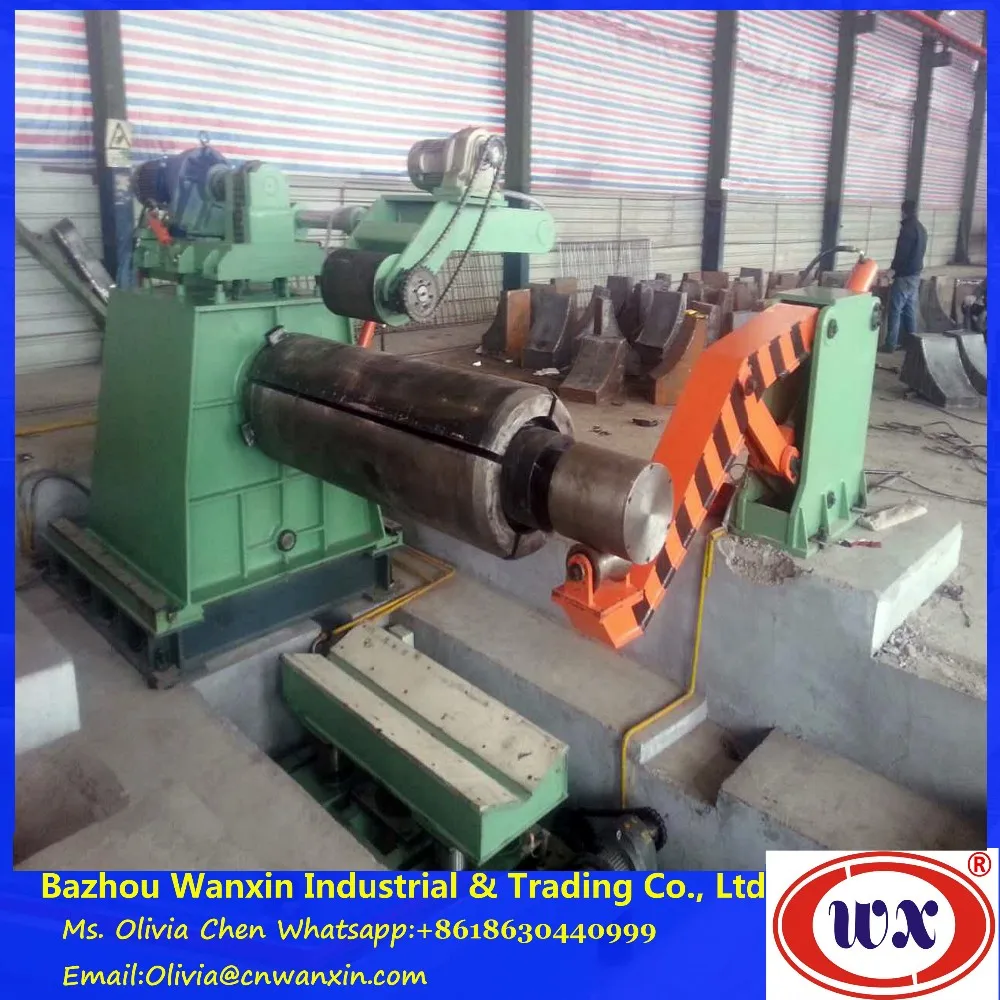

Name: recoiler
Brand:wanxin
Original: china
It adopts the hydraulic expand and shrink recoiler shaft to tight the inner hole of coils. it uses the hydraulic movable arm with the supporting spacers to ensure the even recoiling quality. It is equipped with the push device to help unload the coils. The motor is DC 110KW with 590 controller to ensure the recoiling.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

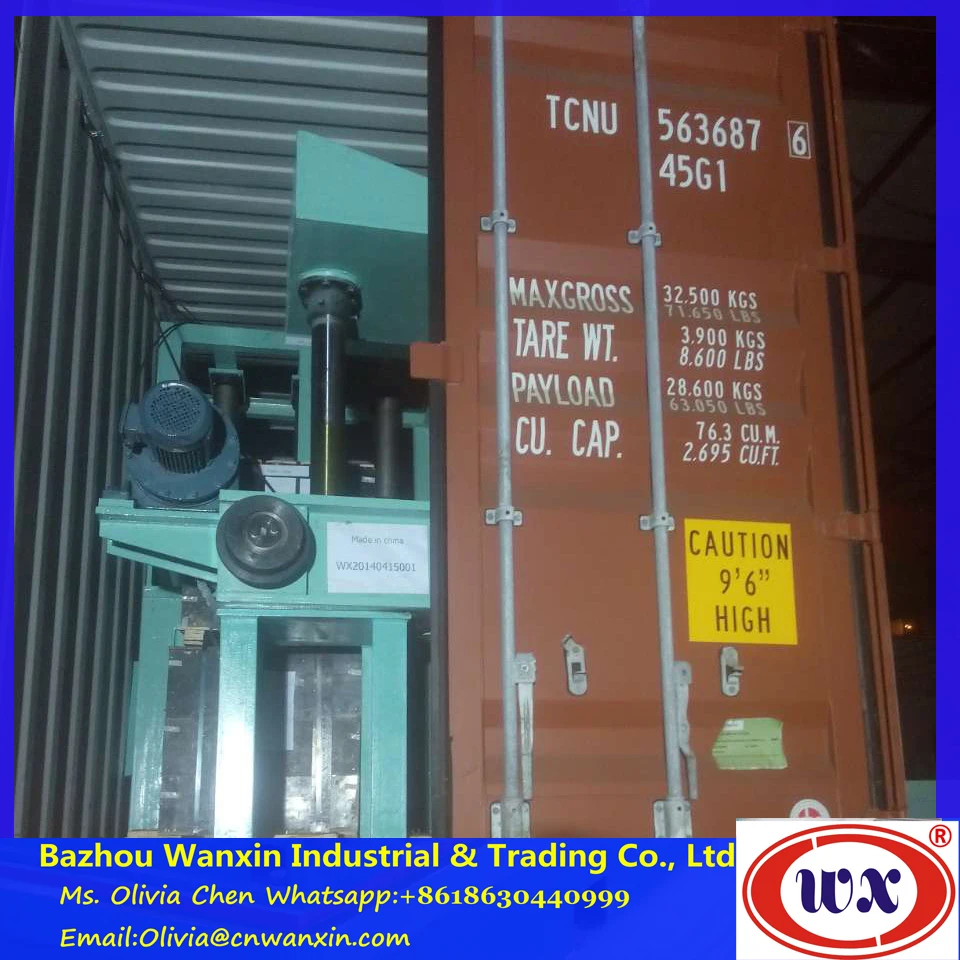

Packing & Delivery
Packaging
Size
containers
Weight
20''-25t



Packaging Details
Packaging
Size
containers
Weight
20''-25t



Packaging Details
