hot dipped galvanizing machine

FOB Reference Price:Get Latest Price
US $200,000-2,000,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
WanXin
Model Number:
hot dipped galvanizing plant
After-sales Service Provided:
Engineers available to service machinery overseas
galvanized products:
small parts or street pole
products length:
0-18m
Color:
Up to customer
Annusl capacity:
60000tons/year
fuel:
disel/gad/oil
Supply Ability
Supply Ability:
80 Set/Sets per Year
Packaging & Delivery
Packaging Details
40'' or 20'' containers
Port
Tianjin Port
Lead Time :
Shipped in 120 days after payment

I.  Hot dipped galvanizing plant General introduction:

The  hot dipped galvanizing plant is used to dip the parts at hot-zinc bath and hang out by cranes.

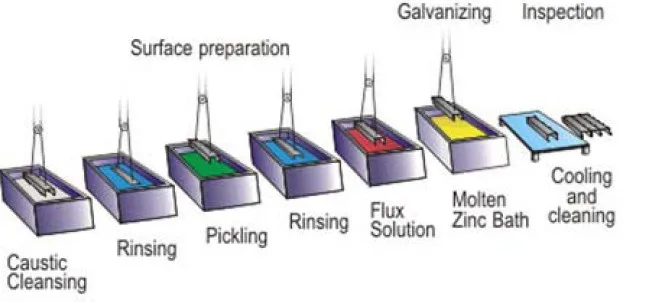

2.hanging type process--hot gi LINEE.jpg



2. hot dipped galvanizing plant General Technical Data



1) Profile length: 13M/16M/18M

2) Annual capacity: 10,000tons/year



up to the customer:

2.1 power tower etc

2.2 street pole

2.3 small parts(bolt etc)

2.4 steel pipe







3. hot dipped galvanizing plant basic data



1)  Plant power

Power supply

AC 380V/50HZ/3Phase

Water

50tons/day

Acid

30% muriatic acid

Gas



2) Plant sizes

The total area

About 2200 m2  (length 100m* width 22m)

Span

22m(double span)

Crown block height

≥8m

 3) Auxiliary materials for users reference while running

Acid washing

30%hydrochloric acid

Solvent (galvanizing aid)

Zinc chloride, battery grade, GB1625-79 or other related standard



Ammonium chloride, first class,GB2946-92 or other related standard

Passivation solution

F-7A Two-component passivation solution,20KG/bucket



F-7B Two-component passivation solution,30KG/bucket

Zinc pot

Zinc alloy (for blasting)



Zinc ingot, holding about 440MT at one time

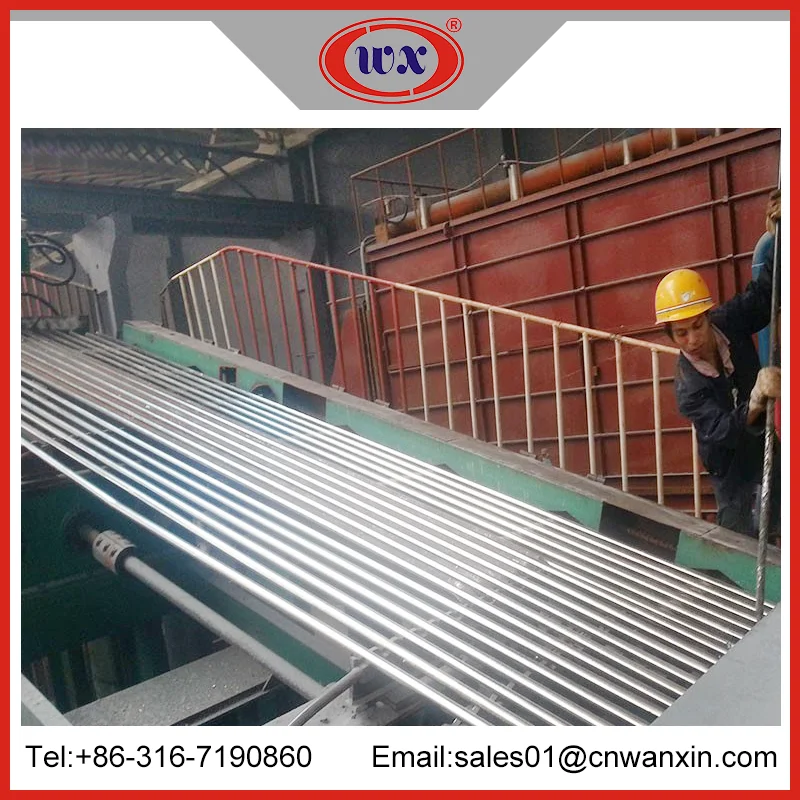

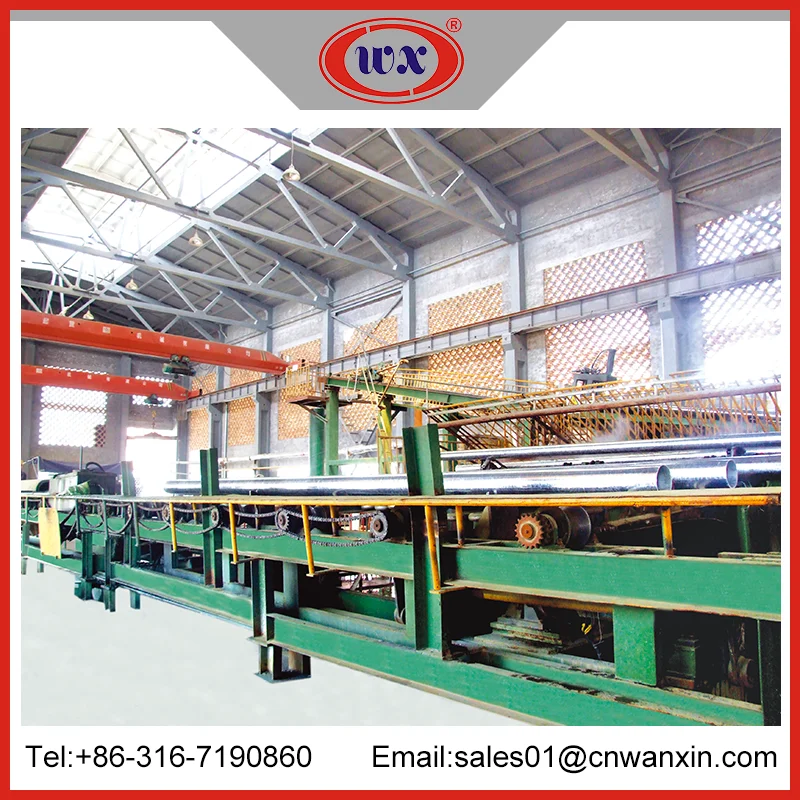

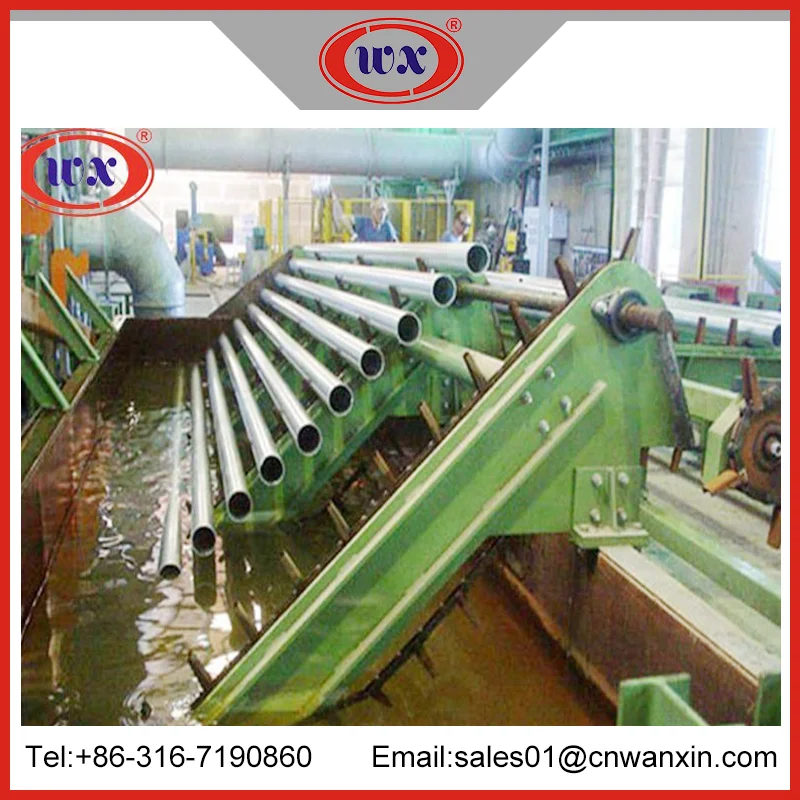

4. hot dipped galvanizing plant PHOTOS

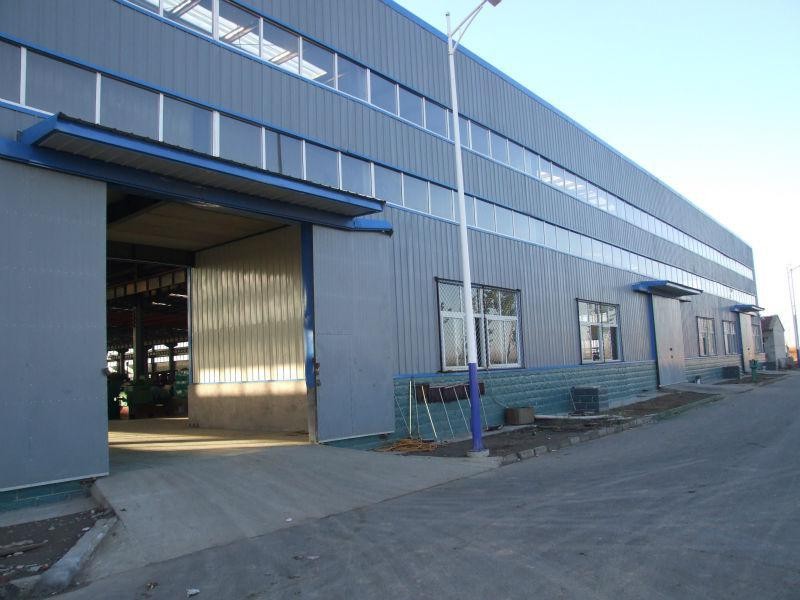

Factory view




If need more details for  hot dipped galvanizing plant, kindly please contact with me:
