Quick Details

  • Condition: New
  • Type: Pipe Mill
  • Pipe Material: Carbon Steel
  • Application: ERW steel pipe making, pipe making for struction, construction, fluid conveying etc.
  • Production Capacity: 50000-70000MT/Year
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: WanXin
  • Model Number: ERW76-114
  • Voltage: 380V, 420V
  • Power(W): 600KW-1000kw
  • Weight: 40-80 MT
  • Certification: ISO9001 QMS Certificate
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: ERW Tube machine
  • Pipe OD: 76-114MM
  • Pipe thickness: 2.5-4.5mm
  • Production speed: 60-90m/min
  • Installed capacity: 600-1000KW
  • Covering area: Length 80-100M, Width 6-10M
  • Packaging: wooden cases and some bulk pieces
  • Shipment: 20"GP, 40"GP, 40"HQ

Packaging & Delivery

Packaging Details Standard seaworthy packaging
Wooden cases and bulk pieces in container 20" GP and 40 GP.
Delivery Time 80-120days

ERW Tube machine





Product Description



INTRODUCTION:

High-frequency ERW straight seam pipe making machine, for the whole prodcution line, at first, the coil is loaded at the uncoiler, then but-welding the ends of coil, delivering to accumulator. After accumulator, the strip is pulled from accumulator contiousely by fixed speed, is formed to opened-pipe at forming machine, then welded by High frequency welder, de-burred, cooled, shaped and sized as round pipe and rectangluar&square pipe at the sizing area. Then the sized pipe is straightened after Turkey-head device and then cutted to fixed length by flying saw. At last, the fixed pipe is delivered from run-out table and inspected at the table.

This line could produce the round pipe, the rectangular and square pipe by material of cold/hot-rolled coil etc. It could be used at the metallurgy, construction, transportation, machinery, automobile industry. Adopting “W” forming type, it could make much more reasonbale force, and much more perfect forming shape at each stand etc.



PRODUCTION PROCESS:



MAIN EQUIPMENT:

Uncoiler

Shear & end welder

Accumulator

Forming and sizing machine

Welding, deburring machine, cooling system

HF solid-state welder

Computer Numerical Control cuting saw

Straightening machine

Runway and operate table

Electrical control system

Mould

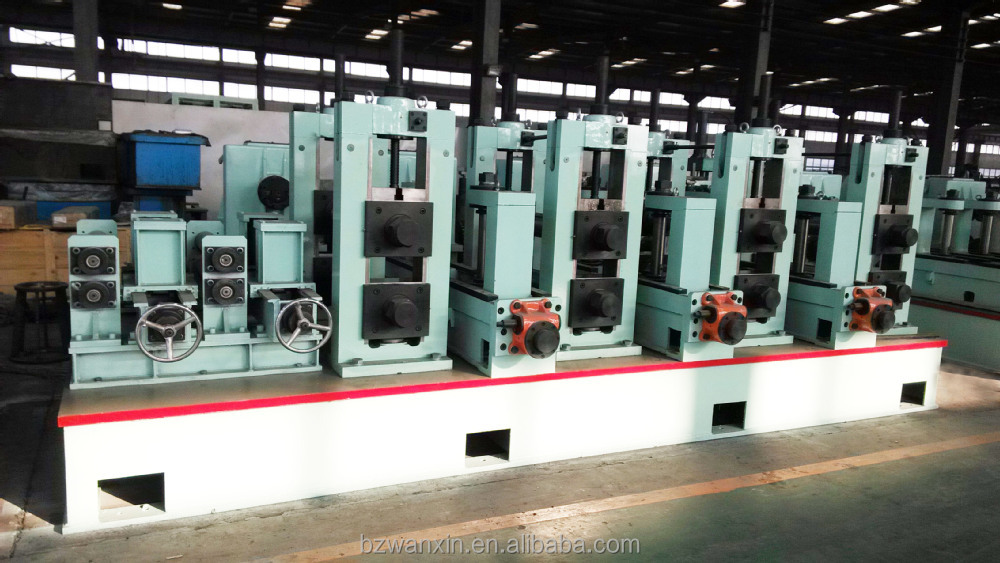

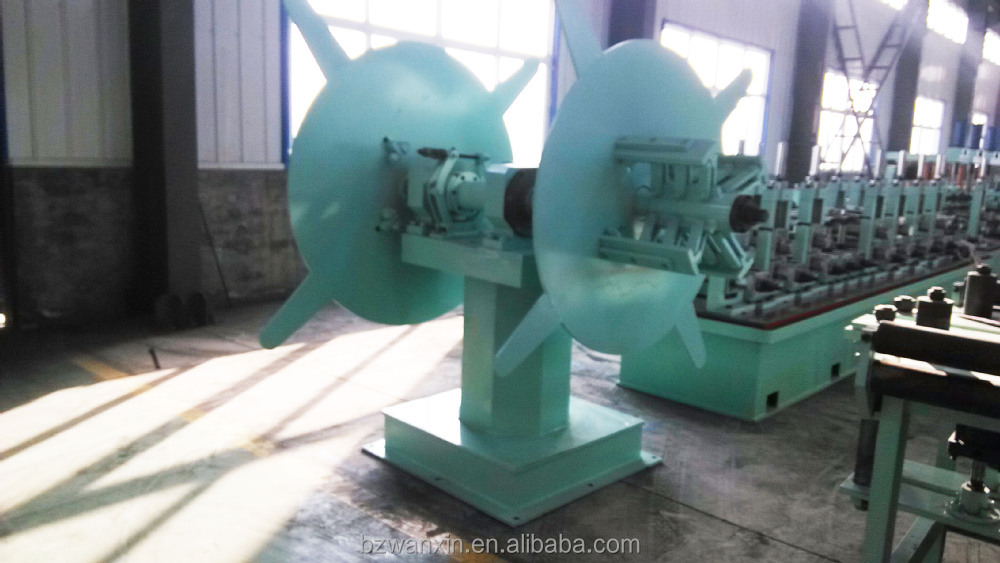

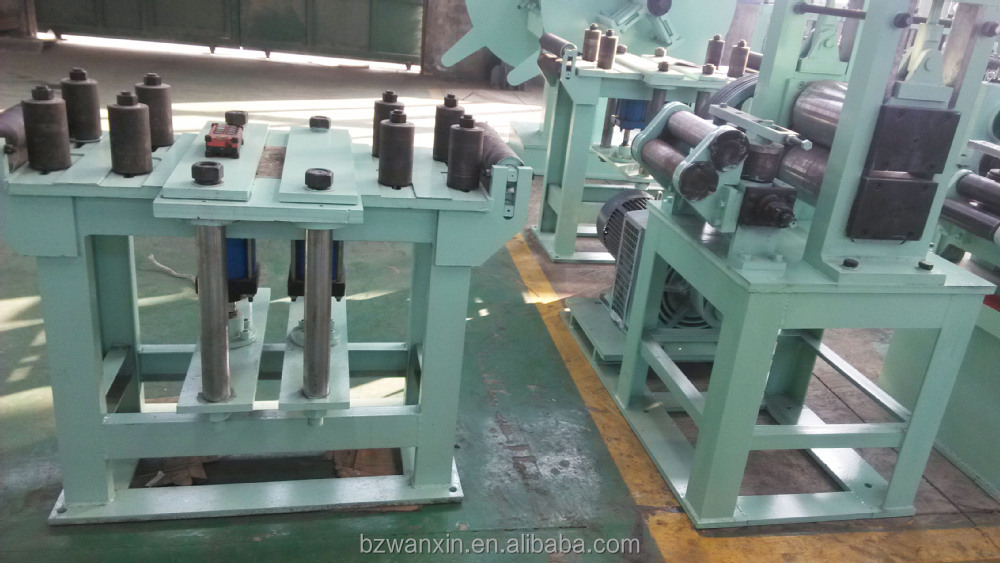

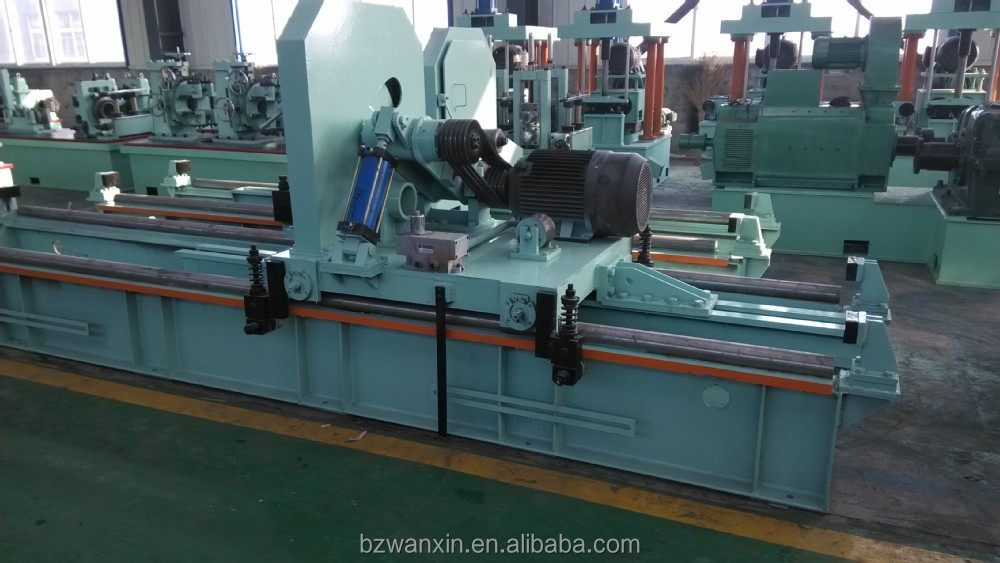

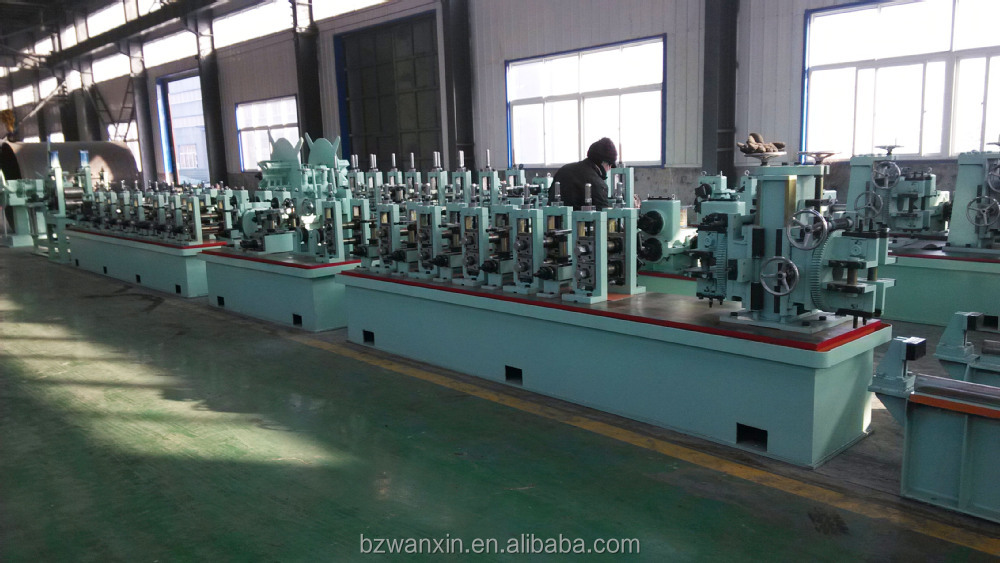

REFFERED EQUIPMENT PHOTO:

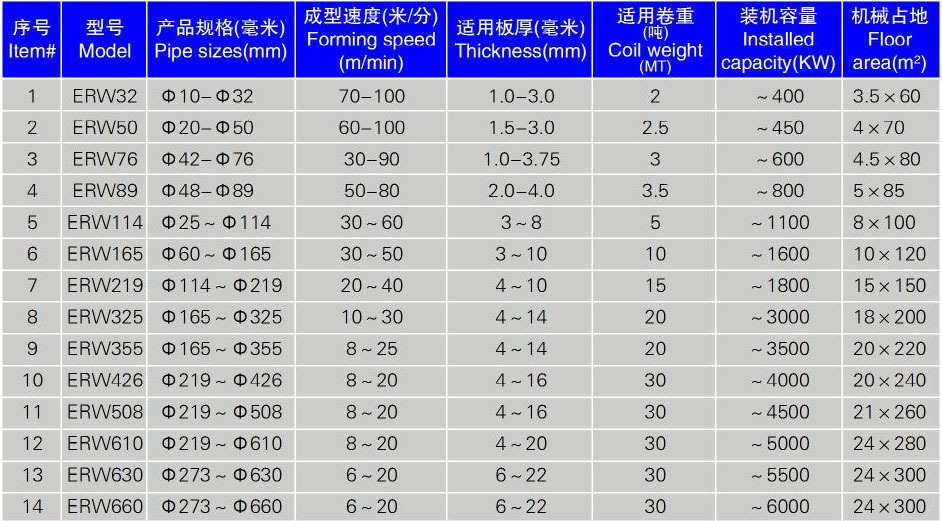

 OUR ERW PIPE MILL MODEL LIST:











Our Services



1. Pre-sell serveice:



Making the whole project design for customers , including workshop layout setting, power capacity, water, worker calculate, whole line equipment professional selection, whole project cost budgeting etc.



2. After-sell service:



Send our engineers to customers' plant for onsite to guide installation and commissioning, arrange workers training, help customers to solve production problems etc.



One year quanliy guarantee time.



3. Could supply sea freight service timely







Company Information

Beijing WanXin Ocean International Trade Co., Ltd. (Hereinafter referred as to WanXin Ocean), is mainly engaged in the export of cold-formed mechanical equipment and steel products. Our business team has more than 20 years' foreign business experience, and also has a unique understanding of mechanical equipment and overseas markets.



WanXin Ocean locates inBeijing of China and backed on our group own independent machinery producing factory BazhouWanxin Industrial and Trading Co., Ltd., in the location of Bazhou city, Hebei Province, with convenient transportation access to Tianjin Port.



BUSINESS  RANGE:

The main products we predominately specializein producing and dealing with are cold-formed mechanical equipments, including:

-  ERW pipe mill

-  High precision slitting & cross-cutting machine

-  SSAW pipe mill

-  Hot galvanizing pipe mill

-  Cold forming steel mill

-  HF welding H-beam production line

-  Pipe rollers.



Also as a professional exporter, WanXin Ocean supplies other steel products:

-  Flat rolled product: HR plate, HRC, CRC, Galvanized Coil, PPGI.

-  Long products: steel pipe, angle steel, and channel steel.

-  Stainless products: stainless steel sheet, stainless pipe, pipe fittings, valves and flanges.

-  All kinds of Steel-wood furniture.

The products meet API, EN ,BS, DIN, ASTM, KS, JIS and GB standards.



R&D ABILITY AND PRODUCT QUALITY:

Our company has devoted technical team, most of the engineers are experienced experts in cold-formed machinery industry. Backed up by two factories which covering 224000 square meters and more than 23 years history, we are experienced in the field of manufacturing and processing. The company continues to maintain annual production capacity over 150 million, and always adhering to the manufacture policy “Quality must always come first”. That’s the firm base of production for customers. WanXin Ocean is available to undertake turn-key machinery projects.





OUR MARKET:

Based on the rich experience in the industry and the growing trade business, the company is expanding the scope of business and building a solid partnership in fields of metallurgy, fabrication and construction, traffic engineering, mechanism and vehicle industry. Our business relationships mainly distribute in Southeast Asia, the Middle East, Africa, Eastern Europe, South America.



To learn more or discuss your projects with our experts, welcome to contact us now!





COOPERATION REFERENCE:






OUR CERTIFICATES:
